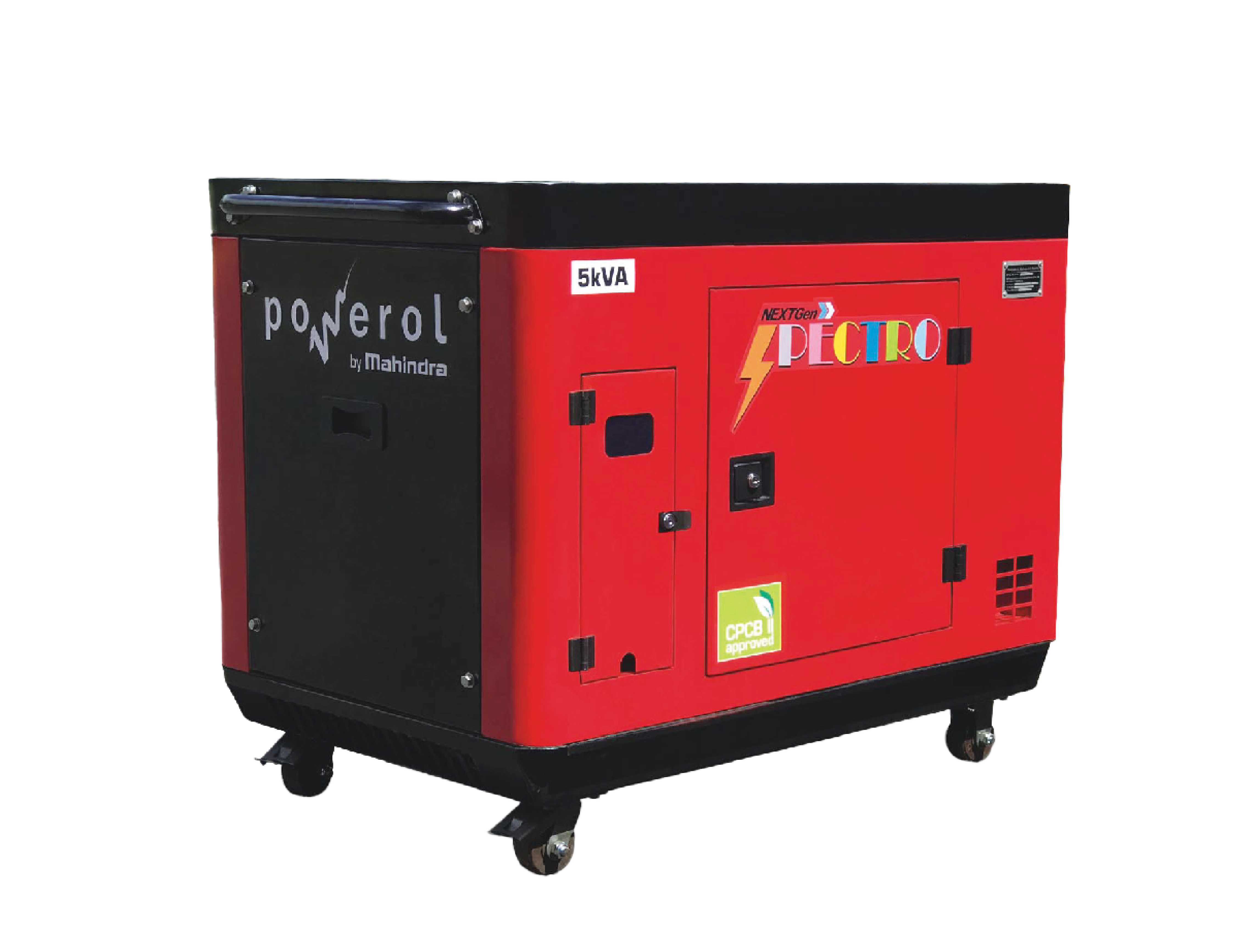

TECHNICAL SPECIFICATIONS FOR

5 kVA / 7.5 kVA / 10 kVA / 12.5 kVA / 15 kVA

Print
PARAMETERS DG MODELS
50 HZ PRIME Rating(kVA) 5 kVA 7.5 kVA 10 / 12.5 kVA 15 kVA
Rated(kWe) 4 6 8 12
Engine Model 15LD440-GSI2 1125GR 2185GM-C2 3385TCIGM-C2 3385TCIGM-C2
No of Cylinders 1 1 2 2 3
Rated Speed RPM 3000 1500 1500 1500 1500
Rated Current(AMP) Capacity @ 0.8PF 1 Phase 21.74 32.6 43.5 65.35
3 Phase NA 10.4 13.9 20.9
Cooling System (Air Cooled/Water Cooled) Air Water Water Water Water
Door Type SD SD SD SD SD
Side lifting DG set dimensions with top hood, if any (mm) Length 1080 1800 1800 1800
Width 700 900 900 900
Height 765 1290 1300 1300
Intergrated Fuel Tank Capacity (lits) 20 42 90 90
Approximate Dry Weight  of DG set (Kg) 225 700 690 680 740
Centre lifting DG set dimensions with top hood, if any (mm) Length 1050 1800 1800 1800 2150
Width 700 900 900 900 1030
Height 745 1250 1250 1250 1300

SL = Side Lifting
CL = Center Lifting
SD = Single Door
DD = Double Door
For continuous improvement company reserves the right to change technical data without prior information



×

TECHNICAL SPECIFICATIONS FOR

7.5 kVA / 10 kVA / 15 kVA

Print
PARAMETERS DG MODELS
50 HZ PRIME Rating(kVA) 7.5 kVA 10 kVA 12 kVA
Rated(kWe) 6 8 12
Engine Model 2185GM-C2 2185GM-C2 2205GM-C2
No of Cylinders 2 2 2
Rated Speed RPM 1500 1500 1500
Rated Current(AMP) Capacity @ 0.8PF 1 Phase 32.6 43.5 65.25
3 Phase 10.4 13.9 20.9
Cooling System (Air Cooled/Water Cooled) Water Cooled Water Cooled Water Cooled
DG Lifting Type SL SL SL
DG set dimension with top hood if any (mm) Length 2215 2215 2215
Width 1050 1050 1050
Height 1336 1336 1336
Intergrated Fuel Tank Capacity (lits) 85 85 85
Approximate Weight of DG set (Kg) 800 800 800
×

TECHNICAL SPECIFICATIONS FOR

20 kVA / 22.5 kVA / 25 kVA / 25 kVA

Print
PARAMETERS DG MODELS
50 HZ PRIME Rating(kVA) 20 kVA 22.5 kVA 25 kVA 25 kVA
Rated(kWe) 16 18 20 20
Engine Model 3285GM-C2 3335TCGM-C2 3385TCIGM-C2 3385TCIGM-C2
No of Cylinders 3 3 3 3
Rated Speed RPM 1500 1500 1500 1500
Rated Current(AMP) Capacity @ 0.8PF 1 Phase 87 97.8 108.7 108.7
3 Phase 27.8 31.3 34.8 34.8
Cooling System (Air Cooled/Water Cooled) Water Water Water Water
Door Type SD SD SD SD
Side lifting DG set dimensions with top hood, if any (mm) Length 2120 2150 2120 2500
Width 900 1030 900 1030
Height 1410 1365 1410 1376
Intergrated Fuel Tank Capacity (lits) 90 90 90 130
Approximate Weight of DG set (Kg) 800 800 820 940
Centre lifting DG set dimensions with top hood, if any (mm) Length 2150 2150 2500 2500
Width 1030 1030 1030 1030
Height 1300 1300 1390 1390

SL = Side Lifting
CL = Center Lifting
SD = Single Door
DD = Double Door
For continuous improvement company reserves the right to change technical data without prior information



×

TECHNICAL SPECIFICATIONS FOR

30 kVA / 40 kVA

Print
PARAMETERS DG MODELS
50 HZ PRIME Rating(kVA) 30 kVA 40 kVA
Rated(kWe) 24 32
Engine Model 3445TCIGM-C2 4575TCIGM-C2
No of Cylinders 3 4
Rated Speed RPM 1500 1500
Rated Current(AMP) Capacity @ 0.8PF 1 Phase 130.4/td> 173.9
3 Phase 41.7 55.6
Cooling System (Air Cooled/Water Cooled) Water Water
Door Type DD DD
Side lifting DG set dimensions with top hood, if any (mm) Length 2500 2500
Width 1030 1030
Height 1376 1376
Intergrated Fuel Tank Capacity (lits) 130 130
Approximate Weight of DG set (Kg) 950 1000
Centre lifting DG set dimensions with top hood, if any (mm) Length 2500 2500
Width 1030 1030
Height 1390 1390

SL = Side Lifting
CL = Center Lifting
SD = Single Door
DD = Double Door
For continuous improvement company reserves the right to change technical data without prior information



×

TECHNICAL SPECIFICATIONS FOR

50 kVA / 62.5 kVA

Print
PARAMETERS DG MODELS
50 HZ PRIME Rating(kVA) 50 kVA 62.5 kVA
Rated(kWe) 40 50
Engine Model 4725GM-C2 4905GM-C2
No of Cylinders 4 4
Rated Speed RPM 1500 1500
Rated Current(AMP) Capacity @ 0.8PF 1 Phase NA
3 Phase 69.6 87
Cooling System (Air Cooled/Water Cooled) Water Water
Door Type DD DD
Side lifting DG set dimensions with top hood, if any (mm) Length 2770 2770
Width 1150 1150
Height 1800 1800
Intergrated Fuel Tank Capacity (lits) 150 150
Approximate Dry Weight of DG set (Kg) 1250 1250
Centre lifting DG set dimensions with top hood, if any (mm) Length 2800 2800
Width 1150 1150
Height 1540 1540

SL = Side Lifting
CL = Center Lifting
SD = Single Door
DD = Double Door
For continuous improvement company reserves the right to change technical data without prior information



×

TECHNICAL SPECIFICATIONS FOR

75 kVA / 82.5 kVA / 100 kVA / 125 kVA

Print
PARAMETERS DG MODELS
50 HZ PRIME Rating(kVA) 75 kVA 82.5 kVA 100 kVA 125 kVA
Rated(kWe) 60 60 66 80 100
Engine Model 41035GM-C2 41035GM-C2 Standby 82.5 kVA Mech CPCB II 100 kVA Mech CPCB II 125 kVA Mech CPCB II
No of Cylinders 4 4 4 4 6
Rated Speed RPM 1500
Rated Engine Power at 100% load KW (HP) 68.9 (93.6) 74.5 (101.2) 93 (126.4) 114.8 (156)
Rated Current(AMP) Capacity @ 0.8PF 1 Phase NA
3 Phase 104.3 115 139 173.9
Door Type DD DD DD DD
Side lifting DG set dimensions with top hood, if any (mm) Length 3000 3200 3200 -
Width 1150 1300 1300 -
Height 2135 2290 2290 -
Intergrated Fuel Tank Capacity (lits) 230 200 200 219
Approximate Weight of DG set (Kg) 1350 1700 1720 1866
Centre lifting DG set dimensions with top hood, if any (mm) Length 2800 3200 3200 3750
Width 1150 1300 1300 1030
Height 1640 1700 1700 1533

SL = Side Lifting
CL = Center Lifting
SD = Single Door
DD = Double Door
For continuous improvement company reserves the right to change technical data without prior information



×

TECHNICAL SPECIFICATIONS FOR

160 kVA / 180 kVA / 200 kVA

Print
PARAMETERS DG MODELS
Parameters DG Model
50 Hz Prime Rating (kVA) 160 180 200
Rated (KWe) 128 144 160
Engine Model 160 kVA Mech CPCB II 180 kVA Elec CPCB II 200 kVA Elec CPCB II
No of Cylinders 6 6 6
Rated Speed(RPM) 1500
Rated Engine Power KW (HP) 146.5 163 180
199 221.5 244.6
Rated Current(AMP) Capacity @ 0.8PF 1 Phase NA
3 Phase 222.6 250.4 278.2
Cooling System Water Cooled
Door Type DD DD DD
Side lifting DG set dimensions with top hood, if any (mm) Length 3790 4500 4500
Width 1300 1500 1500
Height 1877 1878 1878
Intergrated Fuel Tank Capacity (lits) 250 390 390
Approximate Weight of DG set (Kg) 2350 2750 2800
Centre lifting DG set dimensions with top hood, if any (mm) Length 3750
Width 1300
Height 1700

Zero Maintenance For 5 Years With The Powerol Super Shield Plan



×

TECHNICAL SPECIFICATIONS FOR

CONTROL PANEL

Print
Control Panel AMF MCP
Upto 125kVA Mahindra Engines Bernini Procom
125 to 160kVA with Controller Deepsea 6020 / 4520 Deepsea 6020 / 4520
180 to 200kVA with Controller Deepsea 7320 with GPRS / 4520 Deapsea 7320 with GPRS / 4520
250 to 500kVA with Controller Deepsea 6020 / 4520 Deepsea 6020 / 4520
Failure Modes Over voltage/ Under voltage
Over Frequency /Under Frequency
LLOP
High water Temperature
Low Fuel Level
Over Load





×

TECHNICAL SPECIFICATIONS FOR

ALTERNATOR

Print
PARAMETERS DG MODELS
Frame Size G1R200 MD G1R250SB G1R250SD G1R250MA G1R250MB G1R250LB G1R250LD G1R315SE G1R315SB G1R355SB G1R355SE
kVA 82.5 100 125 140 160 180 200 250 320 400 500
KW 66 80 100 112 128 144 160 200 256 320 400
Voltage Regulation ±1%
Insulation Class H
Standard Enclosure IP23
Winding Pitch 2/3 Pitch
Stator Winding 6 Lead Double Layer
Wave form Distortion <2.5% on No Load, <5% on Non distorting balance Linear Load
Telephone Interference Factor As per VDE 0875 [N]
Total Harmonic Factor <3%





×

TECHNICAL SPECIFICATIONS FOR

250 kVA / 320 kVA

Print
Genset Specification
Genset Prime Rating (kVA) * 250 320
Genset Prime Rating (KW) 200 256
Phase / Voltage (V) 3 / 415
Power Factor 0.8 (lagging)
Current (A) 348 445
Frequency (Hz)& RPM 50/1500
Governing class G2 as per ISO 8528 Part V
Starting system 24 V DC Elec
Fuel tank capacity 575 575
Canopy dimensions w/o silencer (mm) (L x W x H) approx. 4600 x 1700 x 2025 4800 x 1700 x 2025
Genset Weight (kg) approx. 3700 3950
Engine Specification
Make / Series Mahindra mPower
Engine Model mPower63105G mPower63905G
Rated Power at 100% Load @ 1500 RPM (HP) 310 390
Aspiration Turbocharged Aftercooled
No. of cylinders 6
Bore x Stroke (mm) 116.6 x 146.1
Displacement (Lit) 9.3
Alternator
Enclosure Type IP23
Voltage regulation ±1%
Class of insulation Class H
Maximum Unbalanced Load across Phases 25%

Above specifications are subject to change without prior notice due to continuous product improvements.

All engines & alternators confirm to respective IS standards

All the genset specifications are as per ISO 8528 standard

* For Standby duty, contact Powerol authorized representative

All specifications are at standard NTP operating conditions

All the above gensets conform to the latest CPCB norms of <75 dbA

×

TECHNICAL SPECIFICATIONS FOR

125 kVA Gas Genset

Print
Genset Rating (kVA) 125
Duty (Standby/ Prime) Prime
Power Rating @ 100% kWe (in KW) 100
No. of Phases 3 phase
Output Voltage (V) 415V
Power Factor (lagging) 0.8
Current (A) 174
Frequency (Hz) & RPM 50/1500
Governing Class G2 as per ISO 8528 part 5
Genset dimensions (L x W x H) in mm 3750 x 1300 x 1700
Genset weight (kg) 2250
Engine Specification
Make MHEL
Model mPower61565GC
Rated Power at 100%Load HP 156
Aspiration TCI
No. of cylinders 6
Bore x Stroke (mm) 105 x 137
Displacement (Lit) 7118
Fuel consumption @ 75% load (kg/hr) ** 20
Fuel consumption @ 100% load (kg/hr)** 25
Starting system 24 V DC Electrical
Lube oil specification Maximile CNG Plus
Total lubrication system capacity 20.2 Ltr
Lube oil consumption @ full load$ 0.15% of FC
Lube oil change period (hrs.) 500
Radiator coolant capacity (liter) 24
Alternator
Make CG / LS
Enclosure Type IP 23
Voltage regulation +/- 1% with 4% engine Governing
Class of insulation Class H
Maximum Unbalanced Load across Phases 25%

Above specifications are subject to change without notice due to continuous technical developments.

* A tolerance value of +-5% will be applicable on declared power values

** A tolerance of +5% shall be applicable on fuel consumption values on account of product to product variation due to engine & + 3% of tolerance due to alternator product to product variation

×

TECHNICAL SPECIFICATIONS FOR

500 kVA

Print
Genset Prime Rating (kVA) * 500
Genset Prime Rating (KW) 400
Phase / Voltage (V) 3/415
Power Factor 0.8 (lagging)
Current (A) 695
Frequency (Hz)& RPM 50/1500
Governing class G2 as per ISO 8528 Part V
Starting system 24 V DC Elec
Fuel tank capacity 900
Canopy dimensions w/o silencer (mm) (L x W x H) approx. 5950x200x2350
Genset Weight (kg) approx. 6500
Engine Specification
Make / Series Perkins
Engine Model 2506D-E15TAG2
Rated Power at 100% Load @ 1500 RPM (HP) 605
Aspiration Turbo Charged After Cooled
No. of cylinders 6
Bore x Stroke (mm) 137*171
Displacement (Lit) 15.2
Fuel consumption @ 75% load (kg/hr) ** 80
Fuel consumption @ 100% load (kg/hr)** 103
Total lubrication system capacity (lit) 62
Lube oil consumption @ 100% load $ 0.10%
Lube oil change period (hrs.) 500
Radiator coolant capacity (liter) 48
Lube oil change period (hrs.) 500
Alternator
Enclosure Type IP 23
Voltage regulation ±1%
Class of insulation Class H
Maximum Unbalanced Load across Phases 25%

All engines & alternators  confirm to respective IS standards

All the genset specifications are as per ISO 8528 standard

Fuel - High Speed Diesel (HSD IS 1460:2005)

**Considering 0.845 specific gravity of diesel 5% tolerance

$ Considering 0.89 specific gravity of oil

* For Standby duty, contact Powerol authorized representative

All specifications are at standard NTP operating conditions

All the above gensets conform to the latest CPCB norms of <75 dbA

GENSETS

While power cuts eat into your profits, an inefficient DG set will simply add to your losses. Powered by Powerol engines, Mahindra Powerol DG sets have been designed to ensure you an efficient power supply. This also assures you years of hassle free operations.

  • GENERATES PEACE OF MIND
    • Its recovery time, easily the best in its category, guarantees a seamless switchover to the back-up power. Moreover, its effective governing system controls the voltage fluctuations, thus ensuing complete safety of your equipments.
  • PERFORMANCE UNMATCHED
    • Its got one of the most preferred engines fitted inside - the Mahindra Powerol engine. Compact and low on vibration, this engine has the smallest footprint as compared to other engines of identical ratings. Making the DG set apt even for roof-mountings.
  • SILENCE CERTIFIED
    • Each and every Powerol DG set complies with the most stringent noise and emission norms stipulated by the Central Pollution Control Board of India (CPCB).
  • NO COMPROMISE TECHNOLOGY
    • It’s got other advantages too. Like, it’s transported through the Mahindra Transport Solutions Group. It is installed and commissioned through a Mahindra authorized dealer. It even comes with an annual maintenance contract. It is most fuel efficient in its class It offers zero-leak engines Manual and AMF control panel options are also available
  • PREFERRED BY ALL
    • A Powerol DG set can be used in the Telecom, Defence and Railway sectors. It can also be installed at places like petrol pumps, hospitals, super markets, banks and construction sites

AVAILABLE MODELS

MODELS

5 kVA

MODELS

20 kVA TO 25 kVA

MODELS

30 kVA / 40 kVA

MODELS

50 kVA / 62.5 kVA

MODELS

75 kVA TO 125 kVA

MODEL

125 kVA Gas Genset

MODELS

160 kVA / 180 kVA / 200 kVA

MODELS

250 kVA / 320 kVA

MODELS

400 kVA / 500 kVA / 625 kVA

For Details about 400 and 625 kVA Please Contact Us At The Toll Free Number:- 1-800-419-1999

MODELS

700 kVA TO 3500 kVA

For Further Details Please Contact Us At The Toll Free Number:- 1-800-419-1999

Control Panel

Alternator
